FIXED IND 114UH 940MA 405MOHM SM

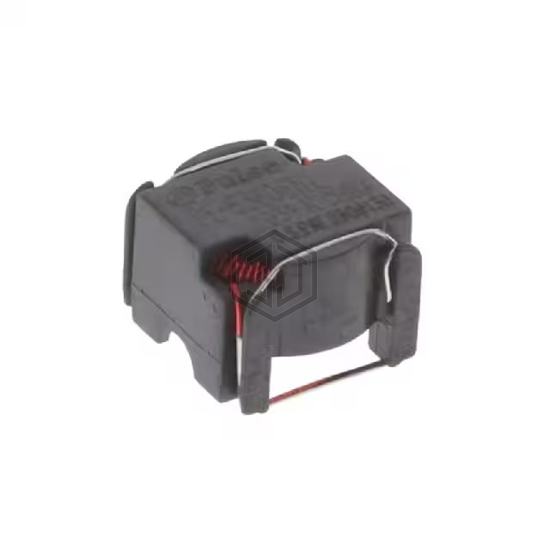

PE-53606NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 114UH 940MA 405MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 940 mA.
In Stock: 8,291
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 114 µH |
| Tolerance | - |
| Current Rating (Amps) | 940 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 405mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.440" L x 0.435" W (11.18mm x 11.05mm) |
| Height - Seated (Max) | 0.360" (9.14mm) |
Submit your RFQ for PE-53606NLT and get a quote within 24 hours.
