FIXED IND 1MH 500MA 2.6 OHM TH

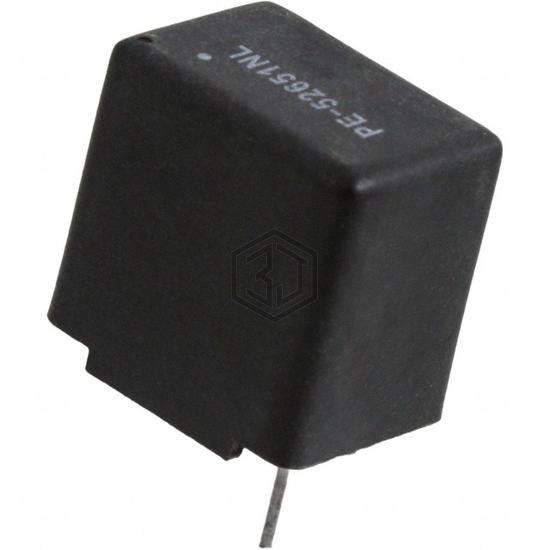

PE-52651NL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 1MH 500MA 2.6 OHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 130°C, package / case Radial, Vertical - Corner Terminals, current rating (amps) 500 mA.
In Stock: 215
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating (Amps) | 500 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.6Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 20 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical - Corner Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.710" L x 0.510" W (18.03mm x 12.95mm) |
| Height - Seated (Max) | 0.710" (18.03mm) |
Submit your RFQ for PE-52651NL and get a quote within 24 hours.
