FIXED IND 150UH 1.7A 420 MOHM TH

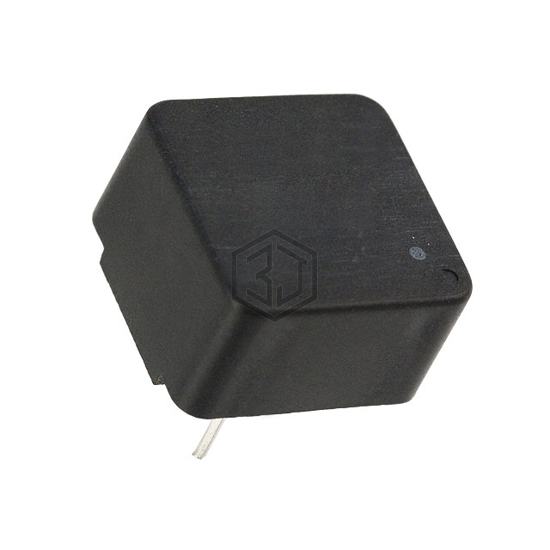

PE-52625NL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 150UH 1.7A 420 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 130°C, package / case Radial, Horizontal - Corner Terminals, current rating (amps) 1.7 A.
In Stock: 449
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 150 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.7 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 420mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 20 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal - Corner Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.710" L x 0.710" W (18.03mm x 18.03mm) |
| Height - Seated (Max) | 0.460" (11.68mm) |
Submit your RFQ for PE-52625NL and get a quote within 24 hours.
