FIXED IND 144UH 10A 32 MOHM TH

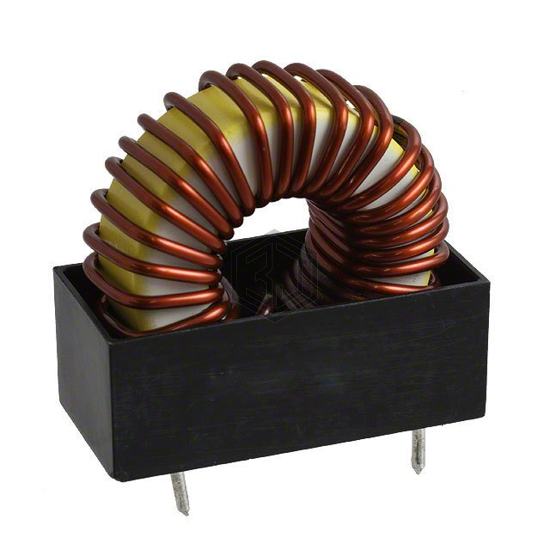

PE-51513NL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 144UH 10A 32 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 130°C, package / case Radial, Vertical, 4 Leads (Open), current rating (amps) 10 A.
In Stock: 146
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 144 µH |
| Tolerance | - |
| Current Rating (Amps) | 10 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 32mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 50 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical, 4 Leads (Open) |
| Supplier Device Package | - |
| Size / Dimension | 2.300" L x 1.110" W (58.42mm x 28.19mm) |
| Height - Seated (Max) | 2.300" (58.42mm) |
Submit your RFQ for PE-51513NL and get a quote within 24 hours.
