FIXED IND 17UH 17A 6.5 MOHM TH

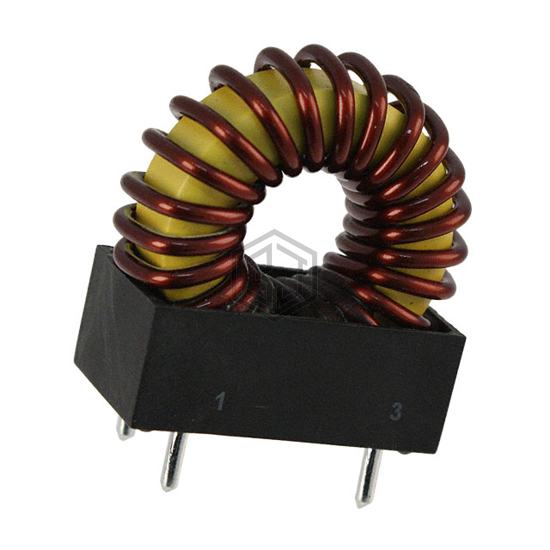

PE-51506NL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 17UH 17A 6.5 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 130°C, package / case Radial, Vertical, 4 Leads (Open), current rating (amps) 17 A.
In Stock: 888
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 17 µH |
| Tolerance | - |
| Current Rating (Amps) | 17 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 6.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 50 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical, 4 Leads (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.600" L x 0.800" W (40.64mm x 20.32mm) |
| Height - Seated (Max) | 1.720" (43.68mm) |
