FIXED IND 22UH 8.1A 20 MOHM SMD

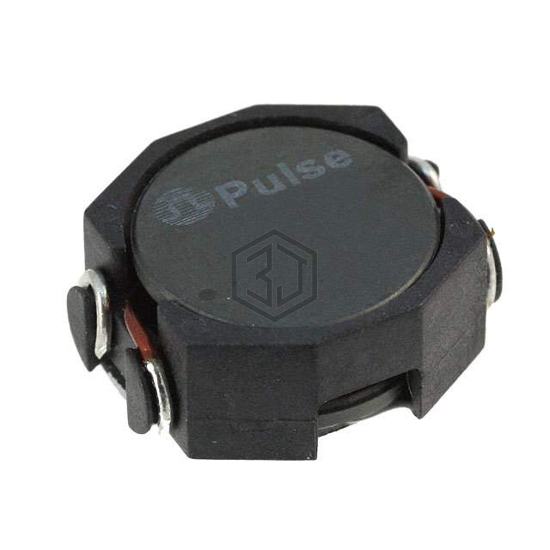

PB2020.223NL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 22UH 8.1A 20 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 8.1 A.
In Stock: 223
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 8.1 A |
| Current - Saturation (Isat) | 13A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 20mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.940" L x 0.820" W (23.87mm x 20.83mm) |
| Height - Seated (Max) | 0.400" (10.16mm) |
Submit your RFQ for PB2020.223NL and get a quote within 24 hours.
