CURR SENSE XFMR 100:1 35A SMD

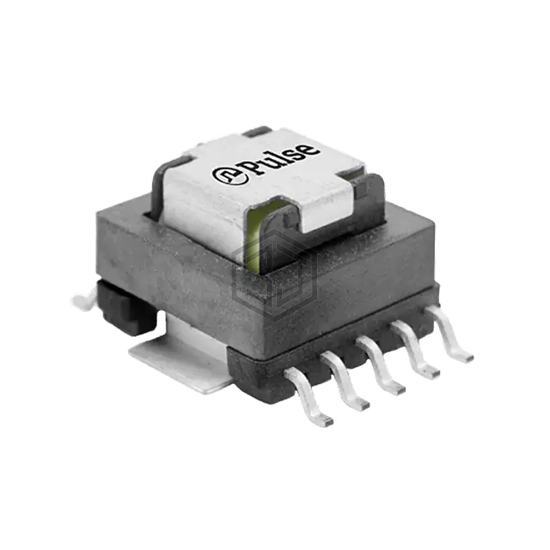

PB0026NL is a Current Sense Transformers manufactured by Pulse Electronics Power. CURR SENSE XFMR 100:1 35A SMD. Key specifications: mounting type Surface Mount, current rating (amps) 35 A, size / dimension 0.591" L x 0.784" W (15.00mm x 19.91mm), termination style Gull Wing.
In Stock: 844
| Attribute | Value |
|---|---|
| Product Status | Active |
| Frequency Range | 50kHz ~ 500kHz |
| Type | Invasive |
| Current Rating (Amps) | 35 A |
| Inductance | 5.6 mH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 100:1 |
| Current Ratio | - |
| DC Resistance (DCR) | 0.42mOhm Primary, 1.4Ohm Secondary |
| Ratings | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.591" L x 0.784" W (15.00mm x 19.91mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Termination Style | Gull Wing |
Submit your RFQ for PB0026NL and get a quote within 24 hours.
