FIXED IND 470NH 25A 3.1MOHM SMD

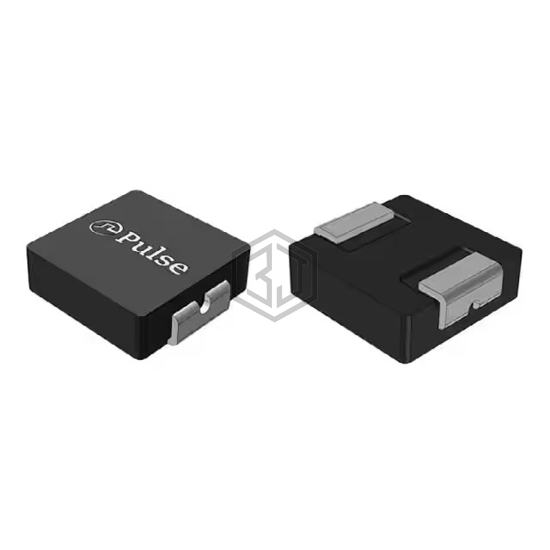

PA5448.471NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 470NH 25A 3.1MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 25 A.
In Stock: 3,990
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 25 A |
| Current - Saturation (Isat) | 24A |
| Shielding | Shielded |
| DC Resistance (DCR) | 3.1mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.346" L x 0.323" W (8.80mm x 8.20mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for PA5448.471NLT and get a quote within 24 hours.
