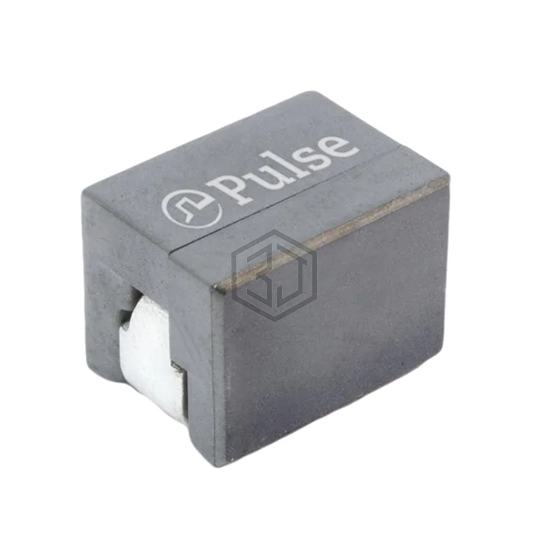

FIXED IND 150NH 65A 0.12MOHM SMD
PA5187.151HLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 150NH 65A 0.12MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 65 A.
In Stock: 2,685
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 150 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 65 A |
| Current - Saturation (Isat) | 75A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.12mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.425" L x 0.323" W (10.80mm x 8.20mm) |
| Height - Seated (Max) | 0.323" (8.20mm) |
Submit your RFQ for PA5187.151HLT and get a quote within 24 hours.
