FIXED IND 5.6UH 7.2A 24.2MOHM SM

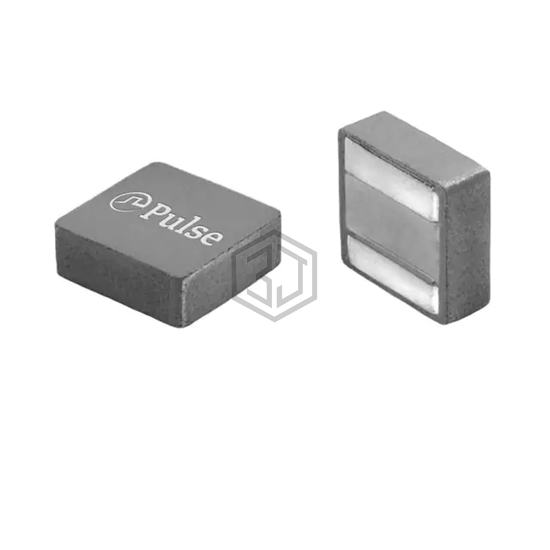

PA5175.562NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 5.6UH 7.2A 24.2MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 7.2 A.
In Stock: 7,921
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 5.6 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7.2 A |
| Current - Saturation (Isat) | 7.2A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 24.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.217" L x 0.209" W (5.50mm x 5.30mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for PA5175.562NLT and get a quote within 24 hours.
