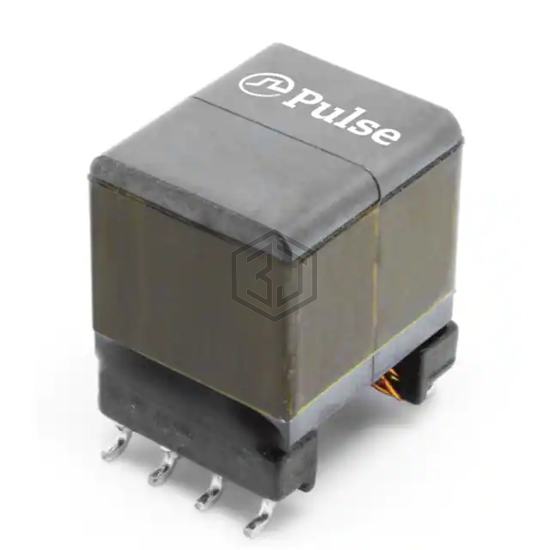

TRANSFORMER, FORWARD, EP10 PLUS,
PA5131.006NLT is a Switching Converter, SMPS Transformers manufactured by Pulse Electronics Power. TRANSFORMER, FORWARD, EP10 PLUS,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, size / dimension 0.610" L x 0.512" W (15.50mm x 13.00mm), frequency 200kHz.
In Stock: 111
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | For DC/DC Converters |
| Applications | Forward, Push-Pull Converters |
| Intended Chipset | - |
| Chipset Manufacturer | - |
| Voltage - Primary | 9 ~ 57V |
| Voltage - Auxiliary | - |
| Voltage - Isolation | 2250V |
| Inductance @ Frequency | - |
| Frequency | 200kHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.610" L x 0.512" W (15.50mm x 13.00mm) |
| Height - Seated (Max) | 0.610" (15.50mm) |
| Footprint | 0.610" L x 0.512" W (15.50mm x 13.00mm) |
| Style | Wirewound |
Submit your RFQ for PA5131.006NLT and get a quote within 24 hours.
