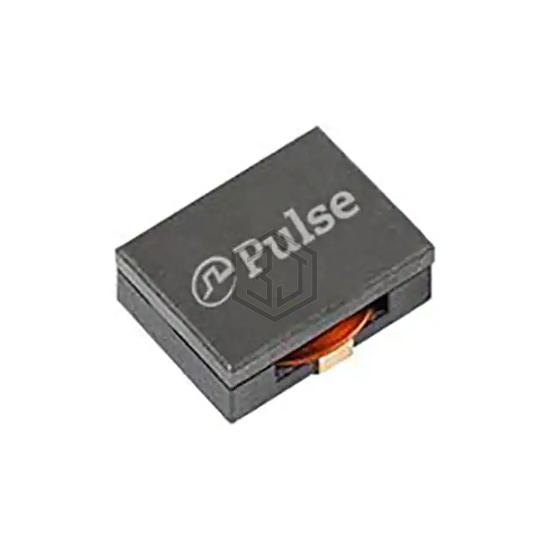

FIXED IND 420NH 16A 3.15MOHM SMD
PA5119.421NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 420NH 16A 3.15MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 16 A.
In Stock: 2,802
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 420 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 16 A |
| Current - Saturation (Isat) | 42A |
| Shielding | Shielded |
| DC Resistance (DCR) | 3.15mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.480" L x 0.386" W (12.20mm x 9.80mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for PA5119.421NLT and get a quote within 24 hours.
