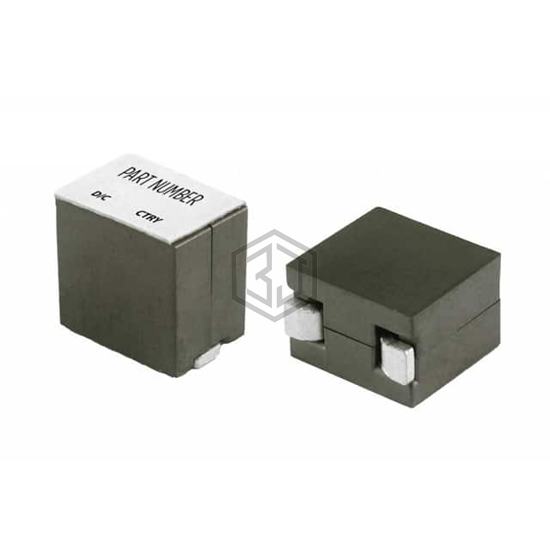

FIXED IND 330NH 22A 0.29MOHM SMD
PA5041.331HLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 330NH 22A 0.29MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 22 A.
In Stock: 2,337
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 330 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 22 A |
| Current - Saturation (Isat) | 28A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.29mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.283" L x 0.264" W (7.20mm x 6.70mm) |
| Height - Seated (Max) | 0.441" (11.20mm) |
Submit your RFQ for PA5041.331HLT and get a quote within 24 hours.
