FIXED IND 2.2UH 13A 13.7MOHM SMD

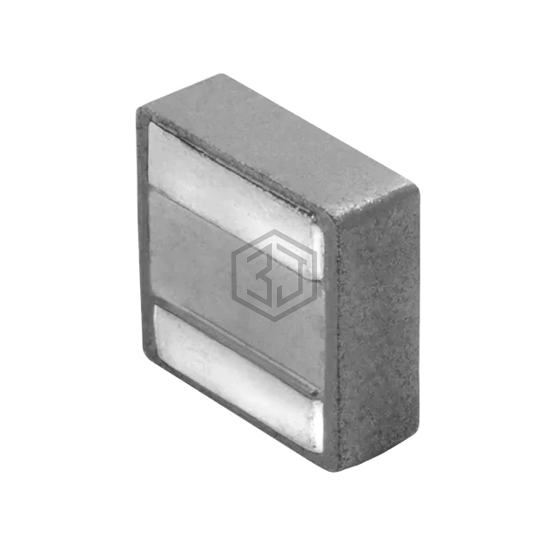

PA5007.222NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 2.2UH 13A 13.7MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 13 A.
In Stock: 1,392
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 13 A |
| Current - Saturation (Isat) | 19A |
| Shielding | Shielded |
| DC Resistance (DCR) | 13.7mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.307" L x 0.299" W (7.80mm x 7.60mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
Submit your RFQ for PA5007.222NLT and get a quote within 24 hours.
