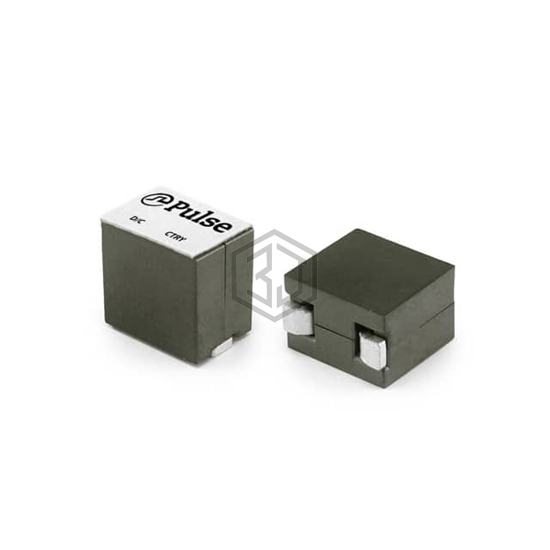

FIXED IND 330NH 32A 0.125MOHM SM
PA4990.331HLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 330NH 32A 0.125MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 32 A.
In Stock: 2,840
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 330 nH |
| Tolerance | ±15% |
| Current Rating (Amps) | 32 A |
| Current - Saturation (Isat) | 40A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.125mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.236" W (10.00mm x 6.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
Submit your RFQ for PA4990.331HLT and get a quote within 24 hours.
