FIXED IND 500NH 40A 1.15MOHM SMD

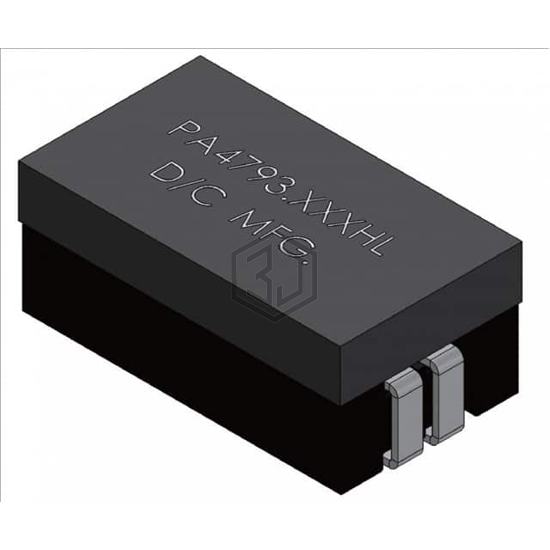

PA4793.501HLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 500NH 40A 1.15MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 40 A.
In Stock: 375
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 500 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 40 A |
| Current - Saturation (Isat) | 60A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.15mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | SMD |
| Size / Dimension | 0.575" L x 0.327" W (14.60mm x 8.30mm) |
| Height - Seated (Max) | 0.260" (6.60mm) |
Submit your RFQ for PA4793.501HLT and get a quote within 24 hours.
