FIXED IND 230NH 46A 0.47MOHM SMD

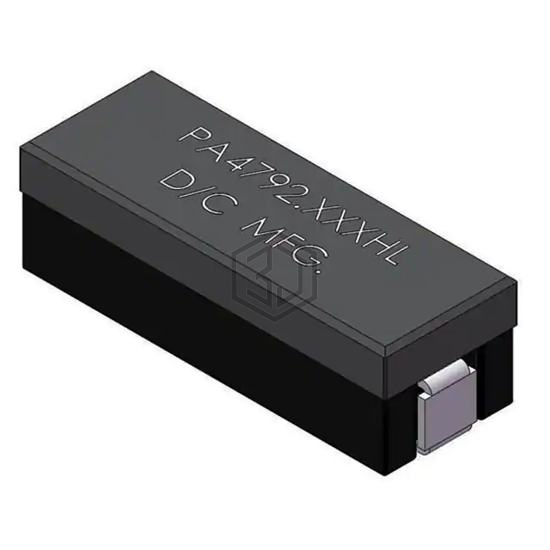

PA4792.231HLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 230NH 46A 0.47MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 46 A.
In Stock: 1,864
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 230 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 46 A |
| Current - Saturation (Isat) | 100A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.47mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | SMD |
| Size / Dimension | 0.874" L x 0.323" W (22.20mm x 8.20mm) |
| Height - Seated (Max) | 0.285" (7.25mm) |
Submit your RFQ for PA4792.231HLT and get a quote within 24 hours.
