FIXED IND 2.2UH 6A 28 MOHM SMD

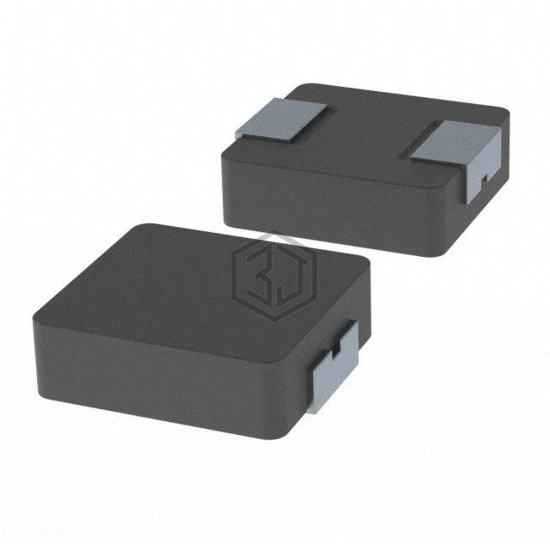

PA4548.222NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 2.2UH 6A 28 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 6 A.
In Stock: 2,864
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6 A |
| Current - Saturation (Isat) | 12A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 28mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.276" L x 0.260" W (7.00mm x 6.60mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
Submit your RFQ for PA4548.222NLT and get a quote within 24 hours.
