FIXED IND 330NH 42A 0.4 MOHM SMD

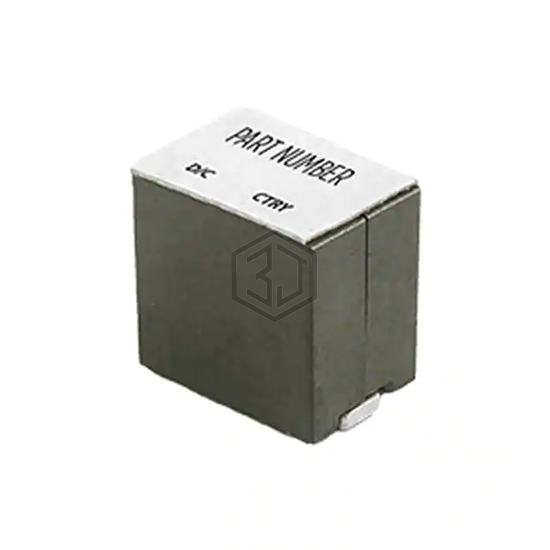

PA4390.331AHLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 330NH 42A 0.4 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, 2 Lead, current rating (amps) 42 A.
In Stock: 7,318
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 330 nH |
| Tolerance | ±15% |
| Current Rating (Amps) | 42 A |
| Current - Saturation (Isat) | 30A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 2 Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.256" W (10.00mm x 6.50mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
Submit your RFQ for PA4390.331AHLT and get a quote within 24 hours.
