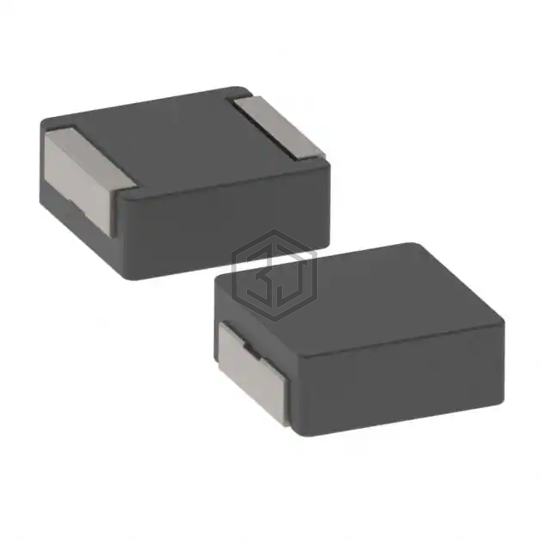

FIXED IND 10UH 21A 10.6 MOHM SMD
PA4344.103ANLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 10UH 21A 10.6 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 21 A.
In Stock: 3,556
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 21 A |
| Current - Saturation (Isat) | 22A |
| Shielding | Shielded |
| DC Resistance (DCR) | 10.6mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.701" L x 0.665" W (17.80mm x 16.90mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
Submit your RFQ for PA4344.103ANLT and get a quote within 24 hours.
