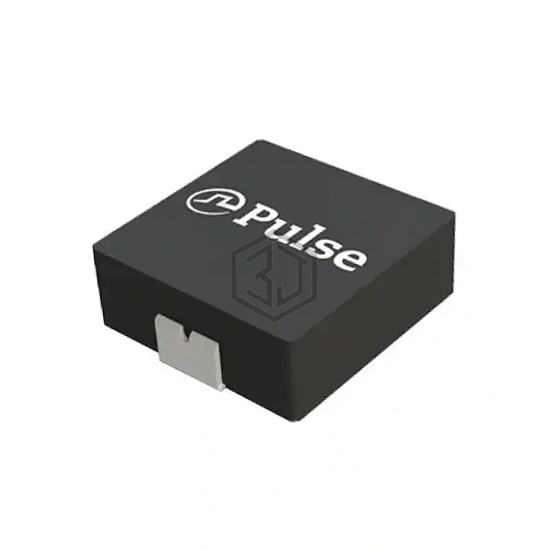

FIXED IND 470NH 28A 1.5 MOHM SMD
PA4342.471NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 470NH 28A 1.5 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 28 A.
In Stock: 445
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 28 A |
| Current - Saturation (Isat) | 43A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.453" L x 0.406" W (11.50mm x 10.30mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for PA4342.471NLT and get a quote within 24 hours.
