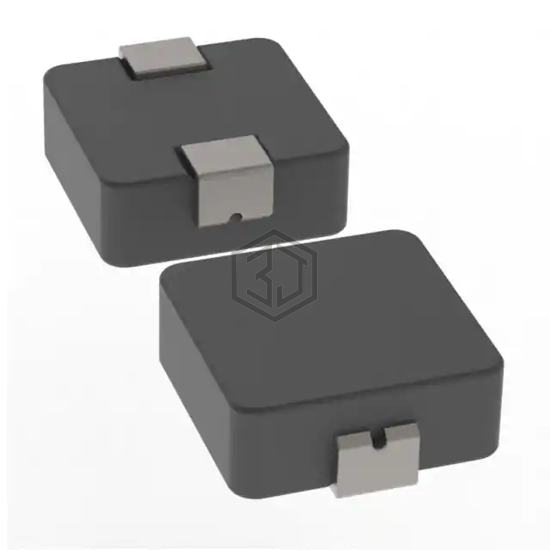

FIXED IND 2.2UH 13A 6.7 MOHM SMD
PA4342.222ANLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 2.2UH 13A 6.7 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 13 A.
In Stock: 3,449
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 13 A |
| Current - Saturation (Isat) | 16A |
| Shielding | Shielded |
| DC Resistance (DCR) | 6.7mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.433" L x 0.394" W (11.00mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for PA4342.222ANLT and get a quote within 24 hours.
