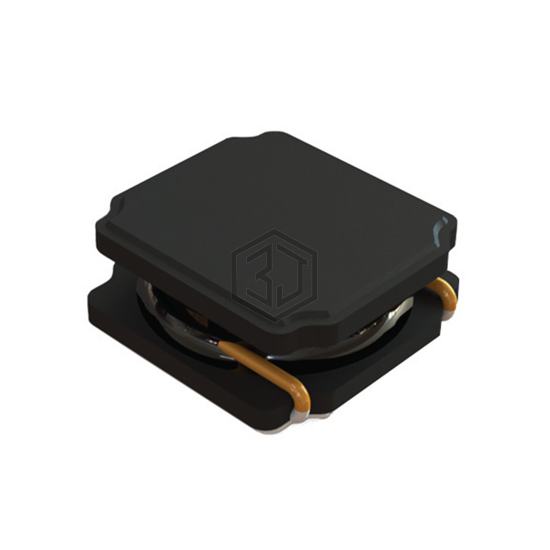

FIXED IND 1UH 1.87A 52 MOHM SMD
PA4334.102NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 1UH 1.87A 52 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.87 A.
In Stock: 15,744
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron |
| Inductance | 1 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1.87 A |
| Current - Saturation (Isat) | 1.87A |
| Shielding | Shielded |
| DC Resistance (DCR) | 52mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 89MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.126" L x 0.126" W (3.20mm x 3.20mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
