FIXED IND 1UH 2.7A 54 MOHM SMD

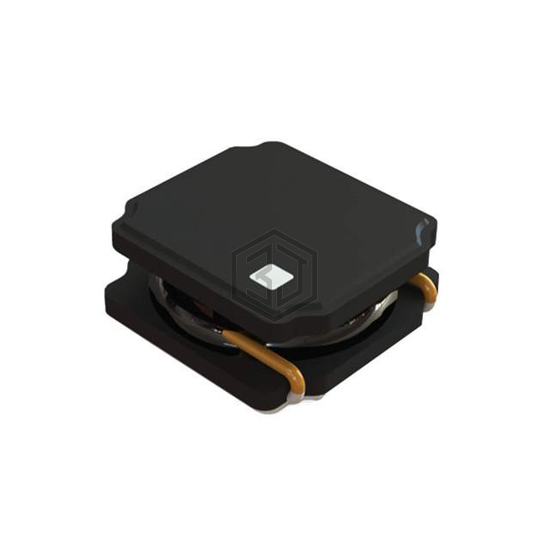

PA4331.102NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 1UH 2.7A 54 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.7 A.
In Stock: 18,013
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.7 A |
| Current - Saturation (Isat) | 4.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 54mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 51MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.126" L x 0.126" W (3.20mm x 3.20mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for PA4331.102NLT and get a quote within 24 hours.
