FIXED IND 470UH 520MA 886MOHM SM

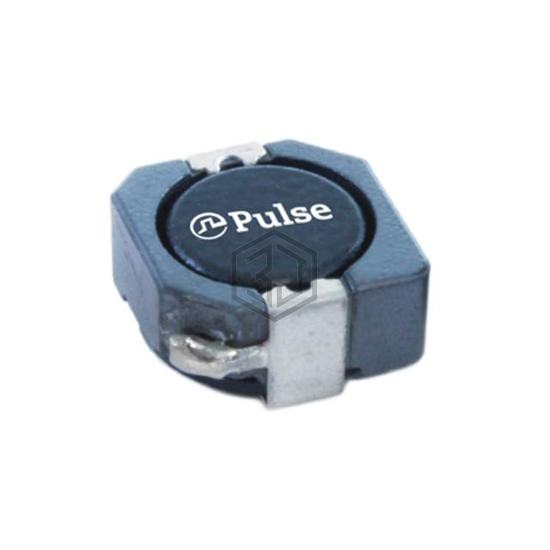

PA4321.474NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 470UH 520MA 886MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, Corner Terminals, current rating (amps) 520 mA.
In Stock: 2,120
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 470 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 520 mA |
| Current - Saturation (Isat) | 430mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 886mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, Corner Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.402" W (10.00mm x 10.20mm) |
| Height - Seated (Max) | 0.201" (5.10mm) |
Submit your RFQ for PA4321.474NLT and get a quote within 24 hours.
