FIXED IND 3.3UH 20A 26 MOHM SMD

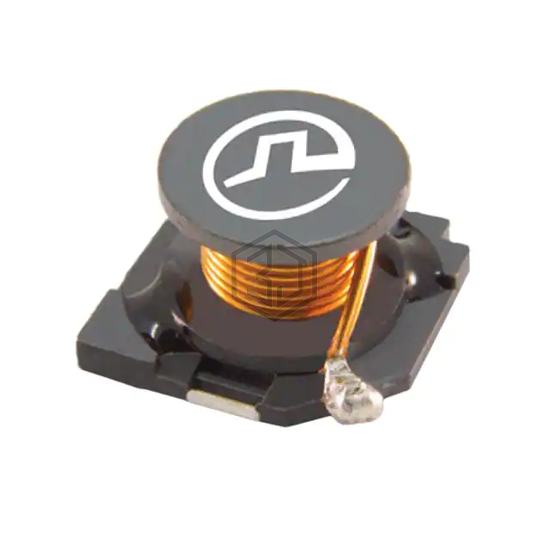

PA4310.332NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 3.3UH 20A 26 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 20 A.
In Stock: 3,435
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 3.3 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 20 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 26mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.504" L x 0.504" W (12.80mm x 12.80mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for PA4310.332NLT and get a quote within 24 hours.
