FIXED IND 1MH 300MA 12.295OHM SM

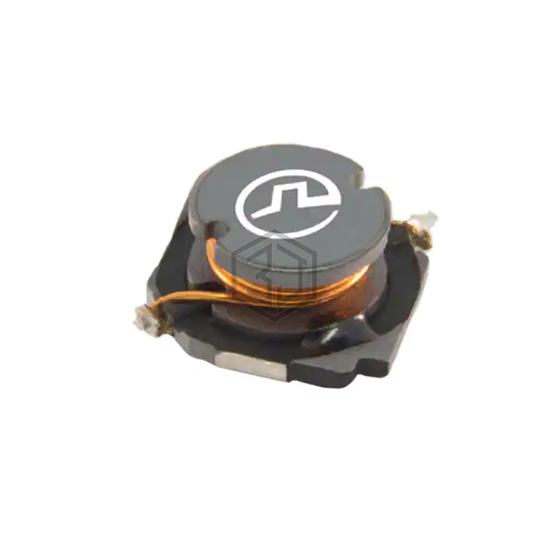

PA4307.105NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 1MH 300MA 12.295OHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 300 mA.
In Stock: 833
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating (Amps) | 300 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 12.295Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
Submit your RFQ for PA4307.105NLT and get a quote within 24 hours.
