FIXED IND 6.8UH 2.5A 108MOHM SMD

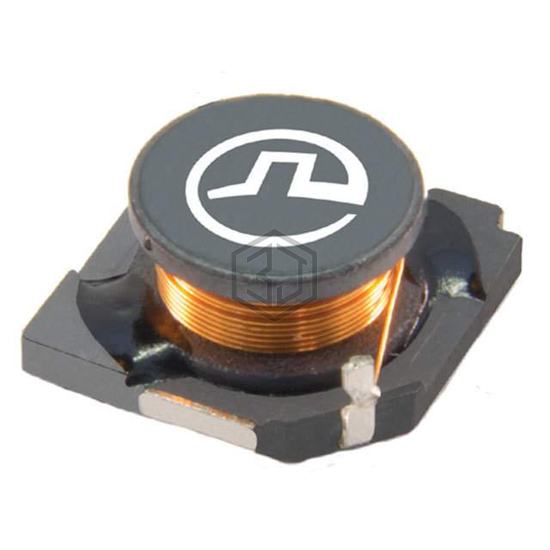

PA4305.682NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 6.8UH 2.5A 108MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.5 A.
In Stock: 4,490
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 6.8 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 2.5 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 108mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.248" L x 0.248" W (6.30mm x 6.30mm) |
| Height - Seated (Max) | 0.126" (3.20mm) |
Submit your RFQ for PA4305.682NLT and get a quote within 24 hours.
