FIXED IND 3.3UH 2.8A 29.9MOHM SM

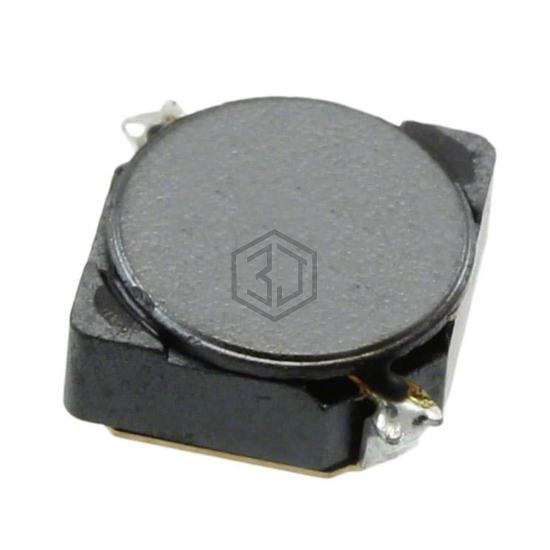

PA4301.332NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 3.3UH 2.8A 29.9MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.8 A.
In Stock: 3,990
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 2.8 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 29.9mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.283" L x 0.283" W (7.20mm x 7.20mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for PA4301.332NLT and get a quote within 24 hours.
