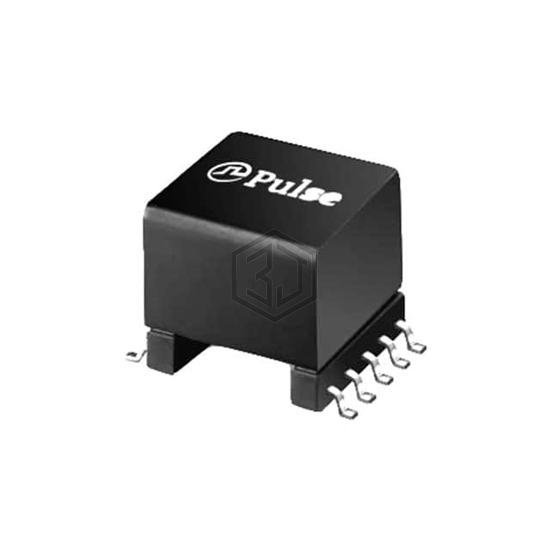

TRANSFORMER FORWARD 100UH SMD
PA3856.001NLT is a Switching Converter, SMPS Transformers manufactured by Pulse Electronics Power. TRANSFORMER FORWARD 100UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, size / dimension 0.571" L x 0.526" W (14.50mm x 13.36mm), frequency 200kHz.
In Stock: 3,085
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | For DC/DC Converters |
| Applications | Forward, Push-Pull Converters |
| Intended Chipset | - |
| Chipset Manufacturer | - |
| Voltage - Primary | 33 ~ 57V |
| Voltage - Auxiliary | 10V @ 50mA |
| Voltage - Isolation | 2250VDC |
| Inductance @ Frequency | - |
| Frequency | 200kHz |
| Operating Temperature | -40°C ~ 130°C |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.571" L x 0.526" W (14.50mm x 13.36mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Footprint | 0.571" L x 0.695" W (14.50mm x 17.65mm) |
| Style | - |
Submit your RFQ for PA3856.001NLT and get a quote within 24 hours.
