FIXED IND 150NH 67A 0.18MOHM SMD

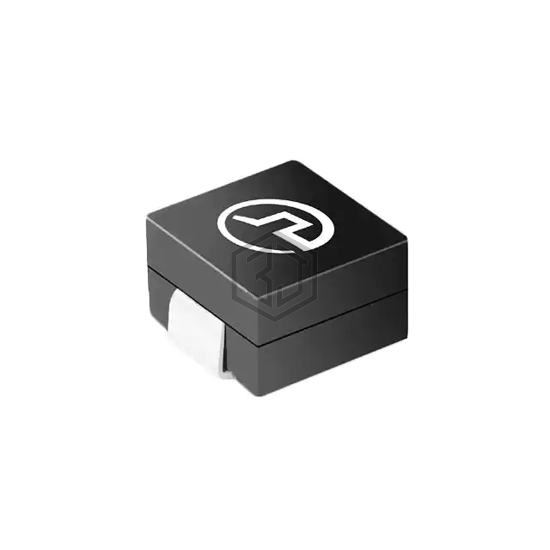

PA3784.151HLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 150NH 67A 0.18MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 67 A.
In Stock: 4,053
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 150 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 67 A |
| Current - Saturation (Isat) | 83A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.18mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.315" W (10.00mm x 8.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
