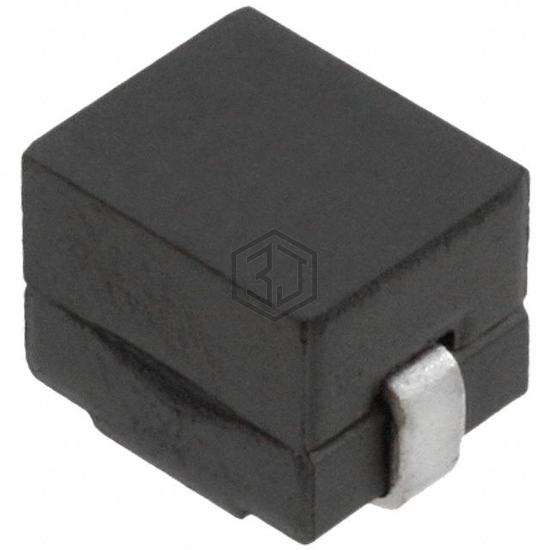

FIXED IND 230NH 37A 0.29MOHM SMD
PA2607.231NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 230NH 37A 0.29MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 37 A.
In Stock: 755
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 230 nH |
| Tolerance | ±15% |
| Current Rating (Amps) | 37 A |
| Current - Saturation (Isat) | 43A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.29mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.406" L x 0.301" W (10.31mm x 7.65mm) |
| Height - Seated (Max) | 0.287" (7.30mm) |
Submit your RFQ for PA2607.231NLT and get a quote within 24 hours.
