FIXED IND 22UH 16A 15.8MOHM SMD

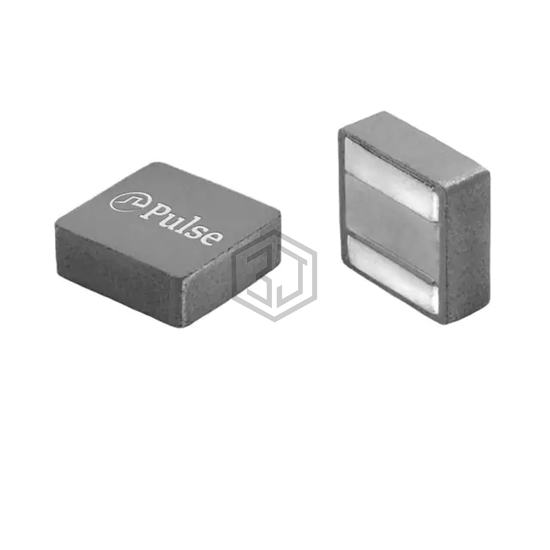

PA2247.223NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 22UH 16A 15.8MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 16 A.
In Stock: 1,122
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 16 A |
| Current - Saturation (Isat) | 18A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 15.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.650" L x 0.610" W (16.50mm x 15.50mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
Submit your RFQ for PA2247.223NLT and get a quote within 24 hours.
