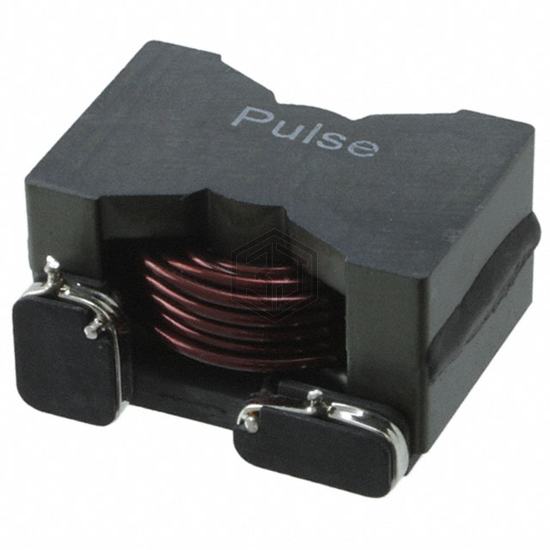

FIXED IND 57.8UH 5A 34.5MOHM SMD
PA2050.583NL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 57.8UH 5A 34.5MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 5 A.
In Stock: 16,766
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 57.8 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 5 A |
| Current - Saturation (Isat) | 6.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 34.5mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.875" L x 0.750" W (22.23mm x 19.05mm) |
| Height - Seated (Max) | 0.480" (12.20mm) |
Submit your RFQ for PA2050.583NL and get a quote within 24 hours.
