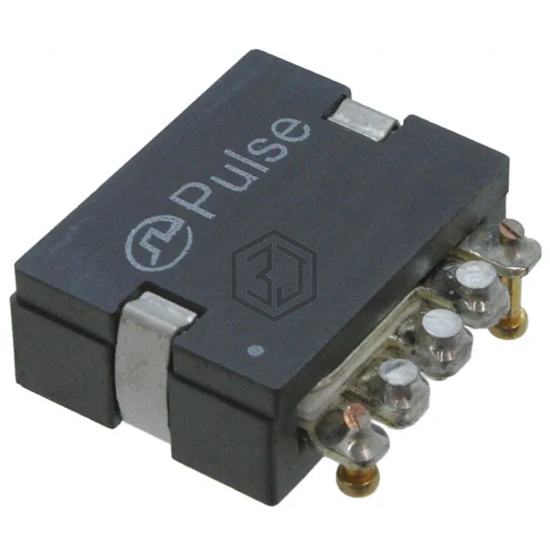

FIXED IND 5.34UH 11A 1.8MOHM SMD
PA1494.532NL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 5.34UH 11A 1.8MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 11 A.
In Stock: 599
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Planar |
| Material - Core | - |
| Inductance | 5.34 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 11 A |
| Current - Saturation (Isat) | 13A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.780" L x 0.770" W (19.81mm x 19.56mm) |
| Height - Seated (Max) | 0.290" (7.37mm) |
Submit your RFQ for PA1494.532NL and get a quote within 24 hours.
