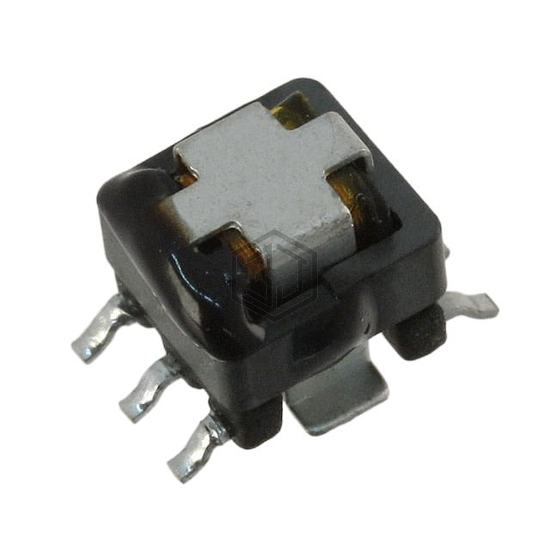

CURR SENSE XFMR 1:50 20A SMD
PA1005.050NLT is a Current Sense Transformers manufactured by Pulse Electronics Power. CURR SENSE XFMR 1:50 20A SMD. Key specifications: mounting type Surface Mount, current rating (amps) 20 A, size / dimension 0.284" L x 0.330" W (7.21mm x 8.38mm), termination style Gull Wing.
In Stock: 24,869
| Attribute | Value |
|---|---|
| Product Status | Active |
| Frequency Range | 50kHz ~ 1MHz |
| Type | Invasive |
| Current Rating (Amps) | 20 A |
| Inductance | 500 µH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1:50 |
| Current Ratio | - |
| DC Resistance (DCR) | 0.75mOhm Primary, 1.5Ohm Secondary |
| Ratings | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.284" L x 0.330" W (7.21mm x 8.38mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Termination Style | Gull Wing |
Submit your RFQ for PA1005.050NLT and get a quote within 24 hours.
