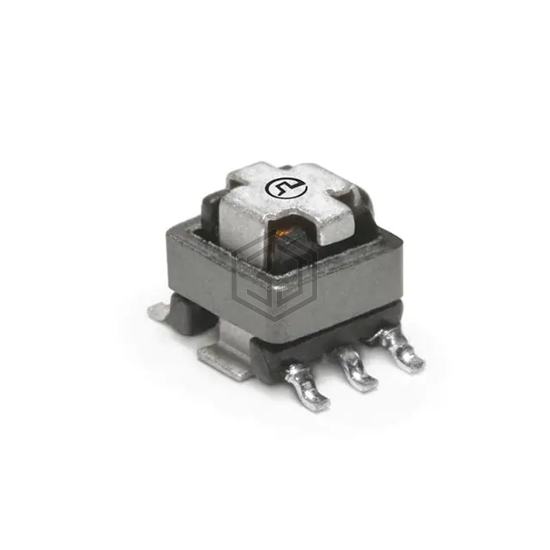

XFMR CURRENT SENSE 1:30 NPB
PA1005.030NL is a Current Sense Transformers manufactured by Pulse Electronics Power. XFMR CURRENT SENSE 1:30 NPB. Key specifications: mounting type Surface Mount, current rating (amps) 20 A, termination style Gull Wing, frequency range 20kHz ~ 1MHz.
In Stock: 6,417
| Attribute | Value |
|---|---|
| Product Status | Active |
| Frequency Range | 20kHz ~ 1MHz |
| Type | Invasive |
| Current Rating (Amps) | 20 A |
| Inductance | 180 µH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1:30 |
| Current Ratio | - |
| DC Resistance (DCR) | 0.75mOhm Primary, 870mOhm Secondary Max |
| Ratings | - |
| Mounting Type | Surface Mount |
| Size / Dimension | - |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Termination Style | Gull Wing |
Submit your RFQ for PA1005.030NL and get a quote within 24 hours.
