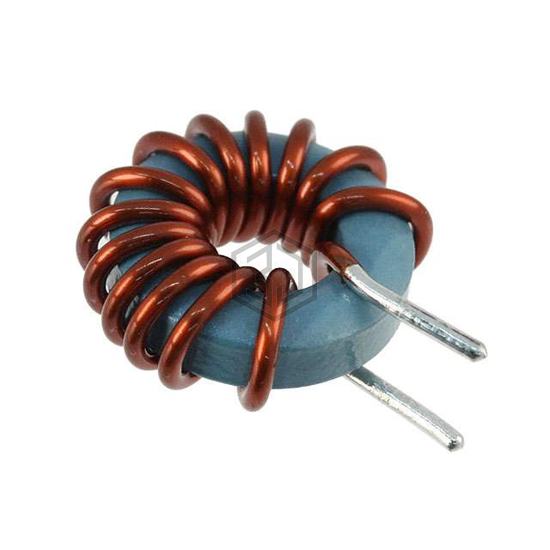

FIXED IND 7.8UH 20.5A 5.5MOHM TH
PA0431LNL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 7.8UH 20.5A 5.5MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 130°C, package / case Radial, Vertical (Open), current rating (amps) 20.5 A.
In Stock: 1,171
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 7.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 20.5 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 5.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.874" Dia x 0.374" W (22.20mm x 9.50mm) |
| Height - Seated (Max) | - |
Submit your RFQ for PA0431LNL and get a quote within 24 hours.
