FIXED IND 16UH 1.2A 174.7MOHM SM

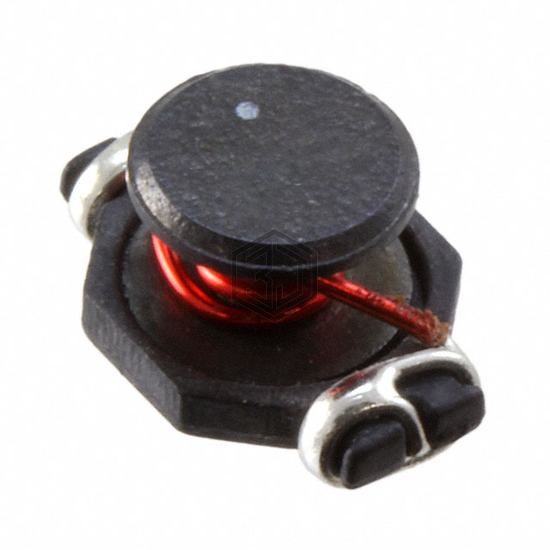

PA0390.153NL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 16UH 1.2A 174.7MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 1.2 A.
In Stock: 147
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 16 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.2 A |
| Current - Saturation (Isat) | 1.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 174.7mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.350" L x 0.240" W (8.89mm x 6.10mm) |
| Height - Seated (Max) | 0.200" (5.08mm) |
Submit your RFQ for PA0390.153NL and get a quote within 24 hours.
