CURR SENSE XFMR 1:20 SMD

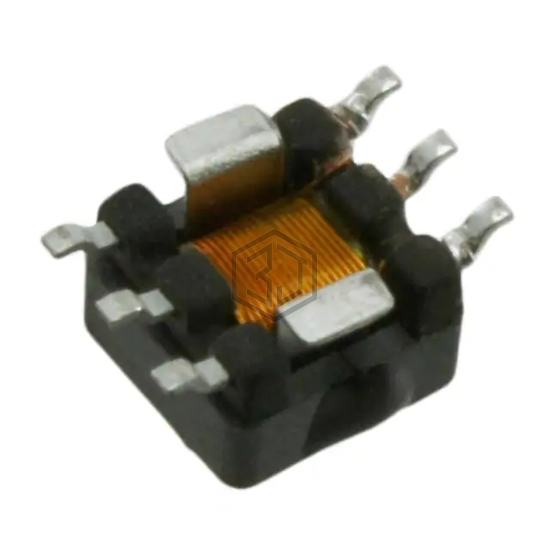

P8202NLT is a Current Sense Transformers manufactured by Pulse Electronics Power. CURR SENSE XFMR 1:20 SMD. Key specifications: mounting type Surface Mount, size / dimension 0.284" L x 0.330" W (7.21mm x 8.38mm), termination style Gull Wing, frequency range 50kHz ~ 1MHz.
In Stock: 28
| Attribute | Value |
|---|---|
| Product Status | Active |
| Frequency Range | 50kHz ~ 1MHz |
| Type | Invasive |
| Current Rating (Amps) | - |
| Inductance | 80 µH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1:20 |
| Current Ratio | - |
| DC Resistance (DCR) | 6mOhm Primary, 550mOhm Secondary |
| Ratings | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.284" L x 0.330" W (7.21mm x 8.38mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Termination Style | Gull Wing |
Submit your RFQ for P8202NLT and get a quote within 24 hours.
