FIXED IND 6UH 6A 16.5 MOHM SMD

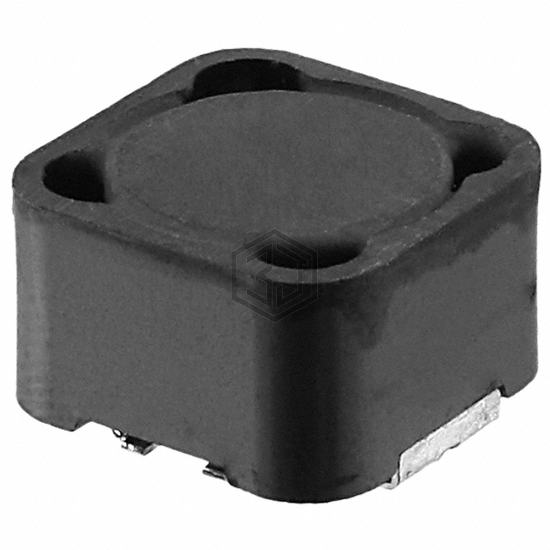

P1173.602NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 6UH 6A 16.5 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 6 A.
In Stock: 1,123
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 6 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 6 A |
| Current - Saturation (Isat) | 6.9A |
| Shielding | Shielded |
| DC Resistance (DCR) | 16.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 30MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.482" L x 0.482" W (12.24mm x 12.24mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for P1173.602NLT and get a quote within 24 hours.
