FIXED IND 220UH 1A 400 MOHM SMD

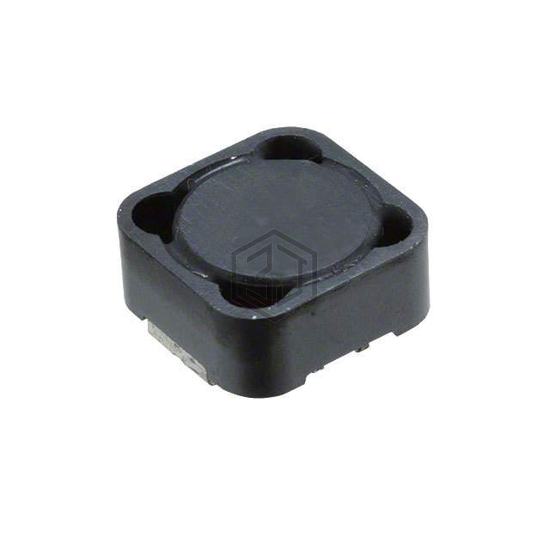

P1170.224NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 220UH 1A 400 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 1 A.
In Stock: 2,277
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | 1A |
| Shielding | Shielded |
| DC Resistance (DCR) | 400mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 3.5MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.482" L x 0.482" W (12.24mm x 12.24mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
Submit your RFQ for P1170.224NLT and get a quote within 24 hours.
