FIXED IND 500NH 14A 2.3 MOHM SMD

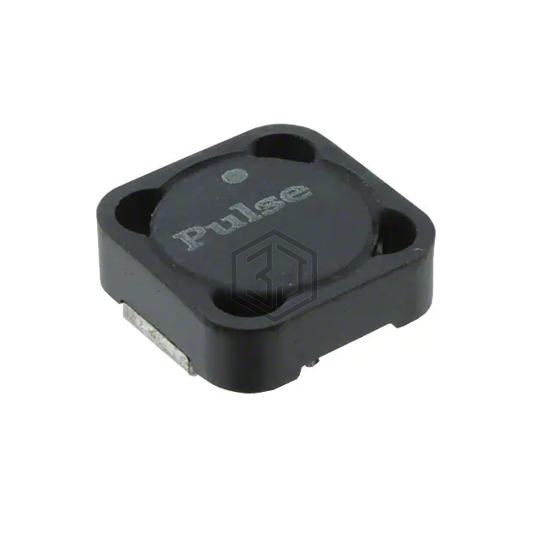

P1168.501NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 500NH 14A 2.3 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 14 A.
In Stock: 882
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 500 nH |
| Tolerance | ±30% |
| Current Rating (Amps) | 14 A |
| Current - Saturation (Isat) | 18A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 40MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.482" L x 0.482" W (12.24mm x 12.24mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
Submit your RFQ for P1168.501NLT and get a quote within 24 hours.
