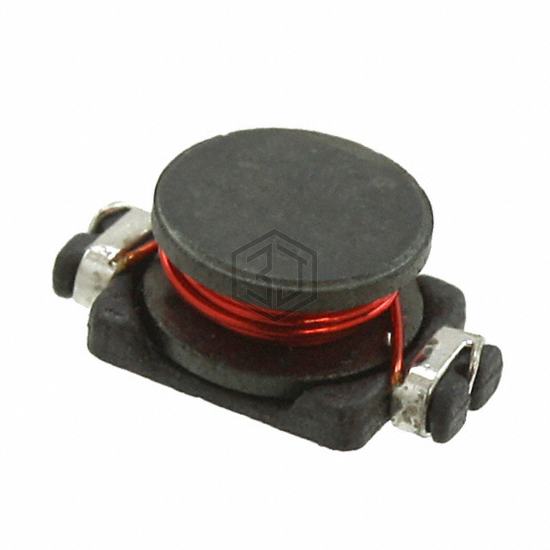

FIXED IND 1UH 2.9A 50 MOHM SMD
P0770.102NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 1UH 2.9A 50 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 2.9 A.
In Stock: 5,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.9 A |
| Current - Saturation (Isat) | 2.9A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 50mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| Height - Seated (Max) | 0.115" (2.92mm) |
Submit your RFQ for P0770.102NLT and get a quote within 24 hours.
