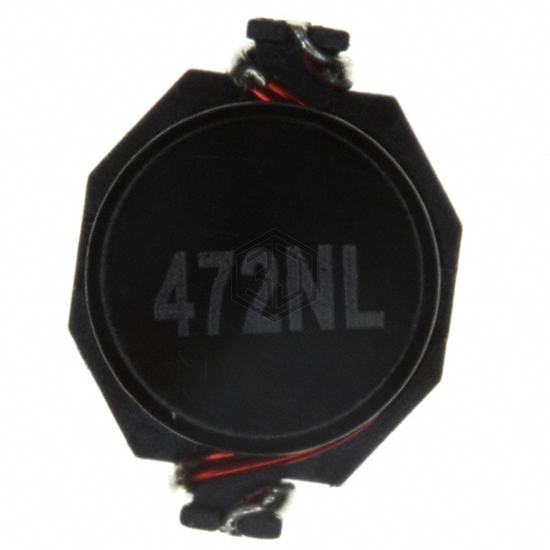

FIXED IND 4.7UH 4.8A 33 MOHM SMD
P0751.472NLT is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 4.7UH 4.8A 33 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 4.8 A.
In Stock: 3,200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.8 A |
| Current - Saturation (Isat) | 5.4A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 33mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.510" L x 0.370" W (12.95mm x 9.40mm) |
| Height - Seated (Max) | 0.215" (5.46mm) |
Submit your RFQ for P0751.472NLT and get a quote within 24 hours.
