FIXED IND 2.2UH 7.1A 14 MOHM SMD

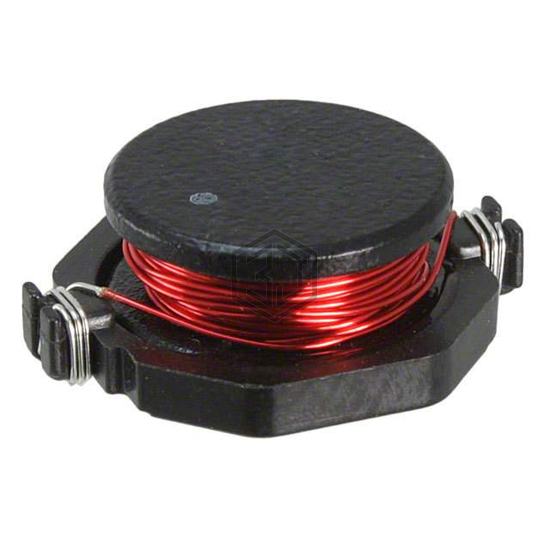

P0250.222NL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 2.2UH 7.1A 14 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 7.1 A.
In Stock: 19
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 2.2 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 7.1 A |
| Current - Saturation (Isat) | 16A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 14mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.733" L x 0.596" W (18.62mm x 15.14mm) |
| Height - Seated (Max) | 0.290" (7.36mm) |
