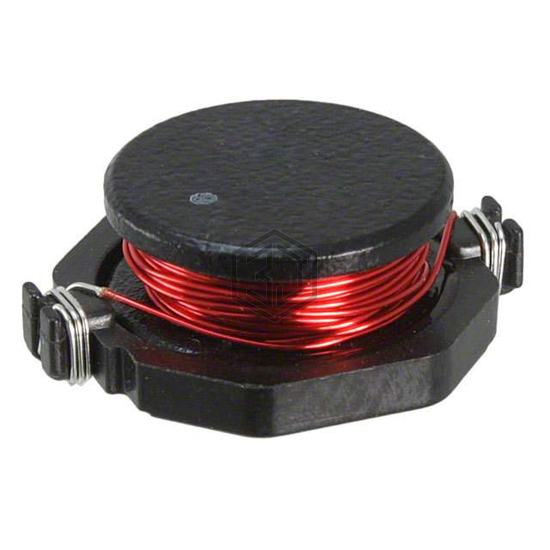

FIXED IND 1UH 8.6A 9 MOHM SMD
P0250.102NL is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 1UH 8.6A 9 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 8.6 A.
In Stock: 39
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 8.6 A |
| Current - Saturation (Isat) | 20A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 9mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.733" L x 0.596" W (18.62mm x 15.14mm) |
| Height - Seated (Max) | 0.290" (7.36mm) |
Submit your RFQ for P0250.102NL and get a quote within 24 hours.
