FIXED IND 470NH 3A 30 MOHM SMD

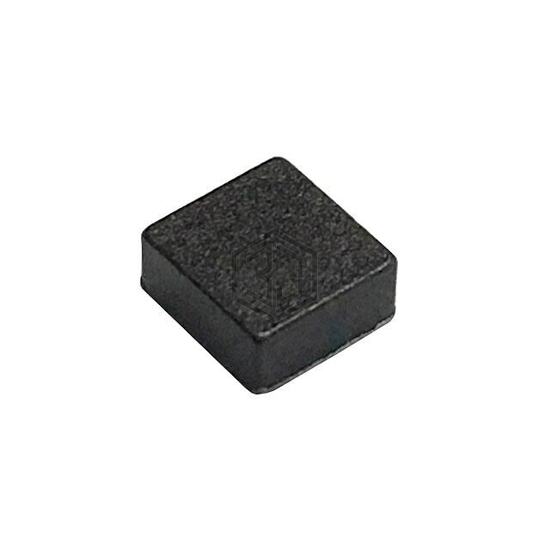

BEBE00141208R47MMA is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 470NH 3A 30 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3 A.
In Stock: 9,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3 A |
| Current - Saturation (Isat) | 4A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 30mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.055" L x 0.047" W (1.40mm x 1.20mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
Submit your RFQ for BEBE00141208R47MMA and get a quote within 24 hours.
