FIXED IND 1UH 4.1A 42 MOHM SMD

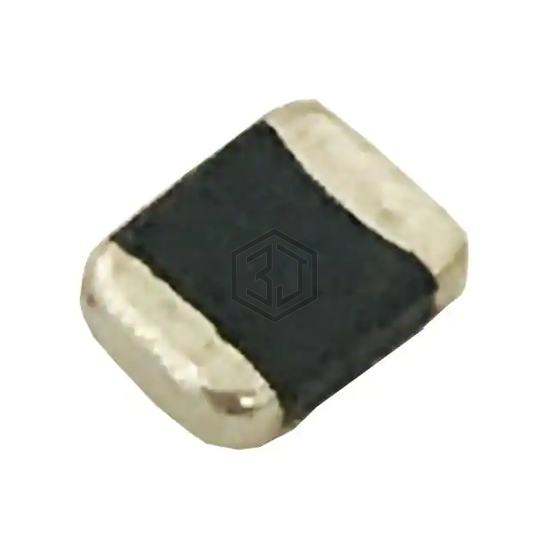

BDHE002520121R0MQ1 is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 1UH 4.1A 42 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1008 (2520 Metric), current rating (amps) 4.1 A.
In Stock: 5,984
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.1 A |
| Current - Saturation (Isat) | 5.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 42mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 2 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
