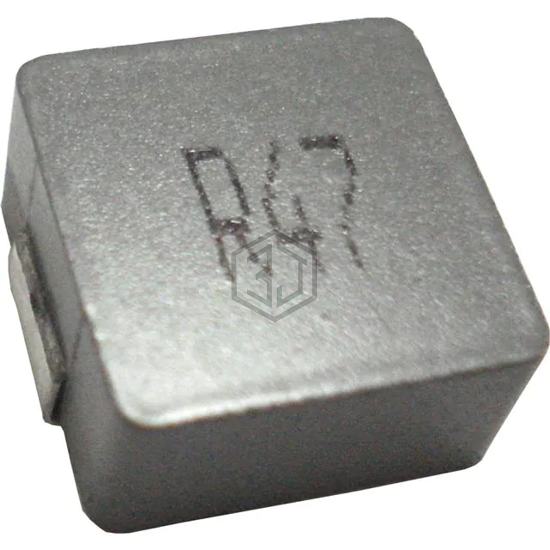

FIXED IND 470NH 5A 20 MOHM SMD
AMRU00040412R47MA1 is a Fixed Inductors manufactured by Pulse Electronics Power. FIXED IND 470NH 5A 20 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 5 A.
In Stock: 3,580
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5 A |
| Current - Saturation (Isat) | 9A |
| Shielding | Shielded |
| DC Resistance (DCR) | 20mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.185" L x 0.165" W (4.70mm x 4.20mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for AMRU00040412R47MA1 and get a quote within 24 hours.
